LockMaster Automatic Electric Gate Opener - Dual Swing - 600kg / 10m

Upgrade your property’s access with the LockMaster Automatic Electric Gate Opener Kit. This powerful system handles heavy-duty gates up to 10 metres long and 600kg in weight, offering smooth and quiet operation with gentle start and stop functionality for long-lasting performance.

Featuring advanced safety detection, a programmable auto-close timer, and an emergency manual release, it’s the ideal solution for convenient and reliable gate automation.

Key Features:

• Electric gate opener
• Handles gates weighing up to 600kg and up to 10m long
• Optional push-to-open bracket for outward gate opening
• Gentle start and stop operation
• Automatically stops or reverses when obstruction is detected

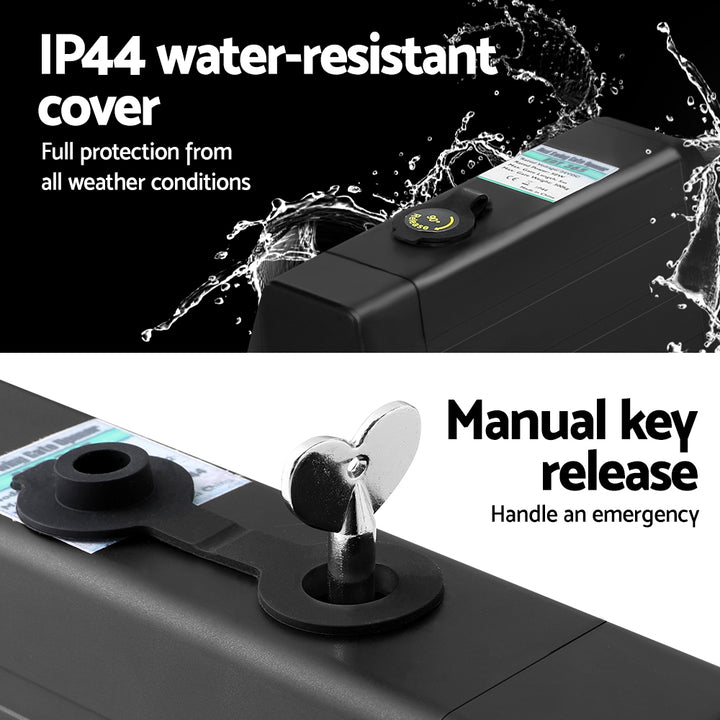

• Emergency release key for manual operation during a power failure
• Programmable auto-close feature (adjustable between 0–99 seconds)
• Weather and dust-resistant control box
• Comes with 3 programmable remote controls
• Suitable for steel, wood, and vinyl gates in panel, tube, or chain-link styles

Specifications:

• Motor voltage: 24V DC
• Motor power: 50W per arm
• Maximum gate weight: 300kg per arm (600kg total)
• Maximum gate length: 10m
• Actuator speed: 20mm/s

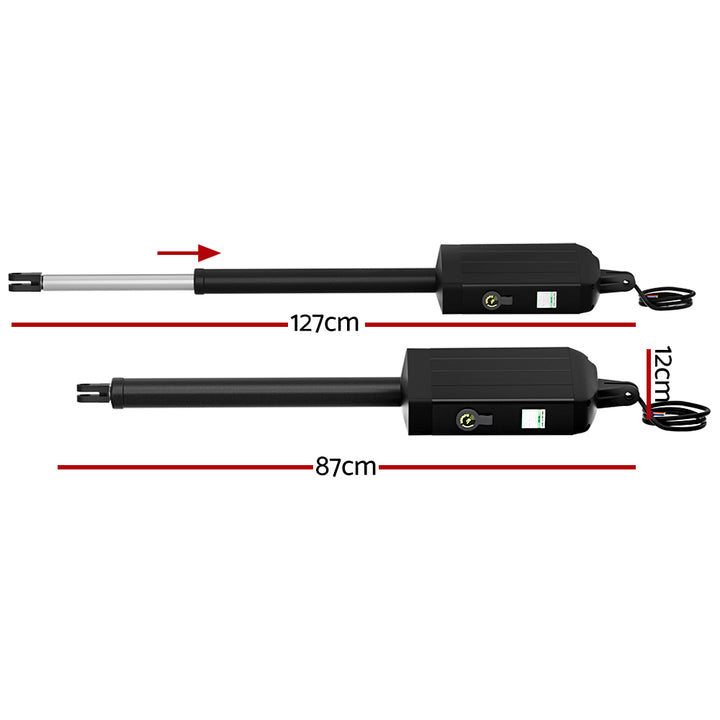

• Actuator travel: 385mm
• Operating temperature: -22°C to +55°C
• Protection class: IP44
• Remote controls: 3 included
• Remote operating range: 30m
• Remote control battery: 12V 27A (alkaline zinc manganese)
• Assembly required: Yes
• Number of packages: 1

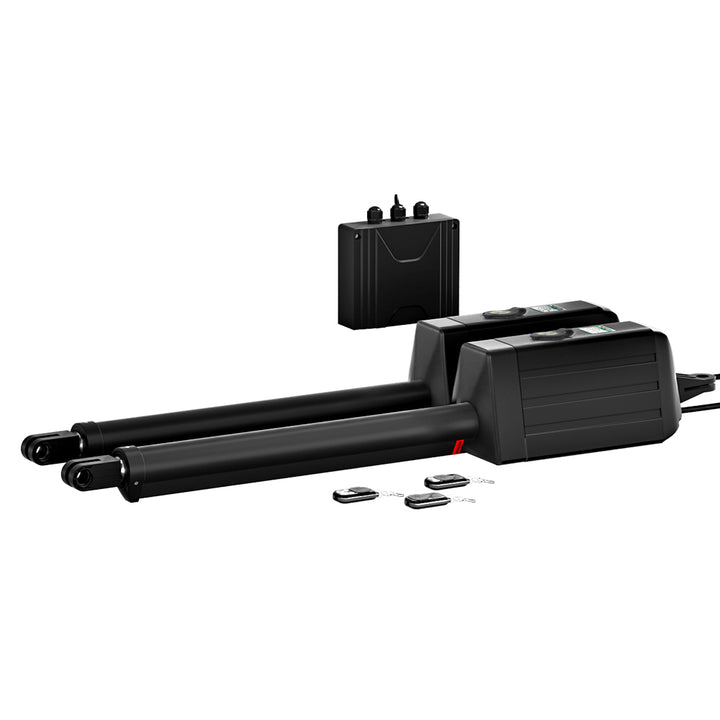

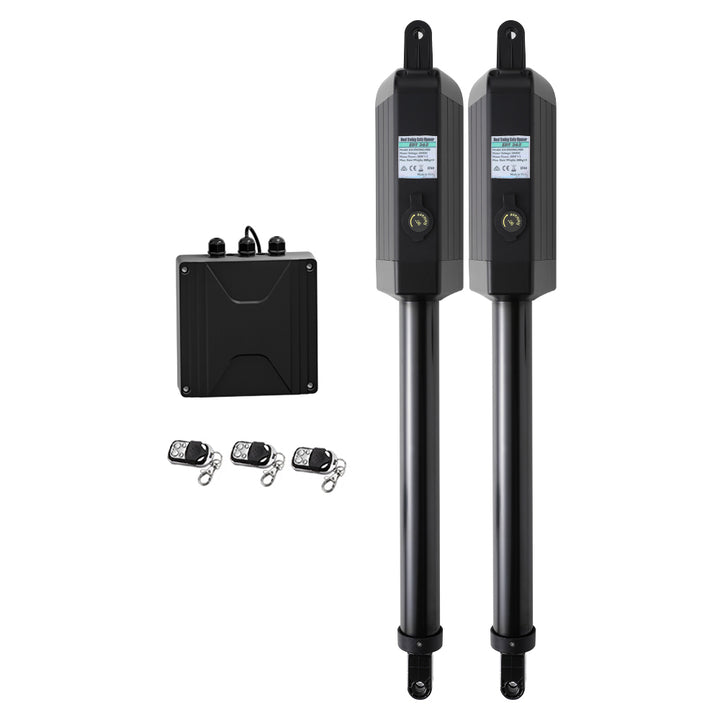

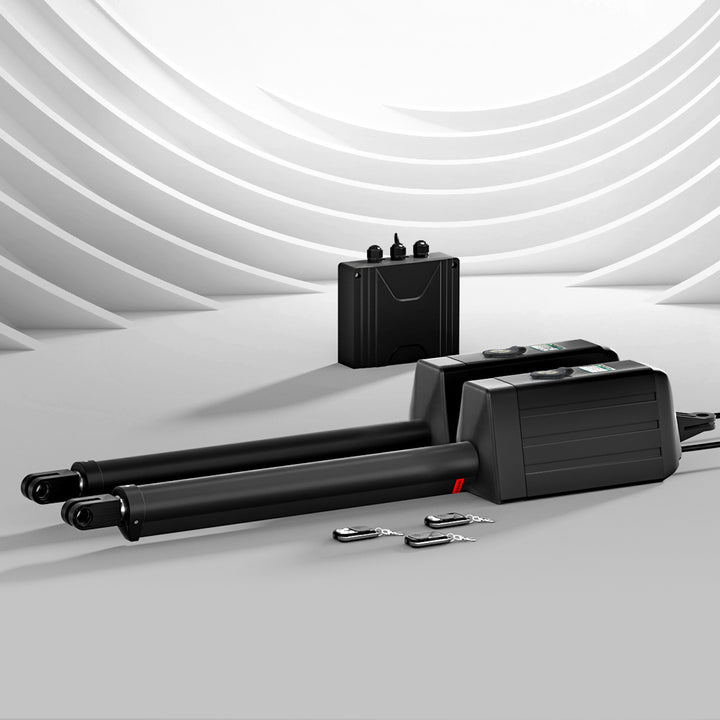

What's Included:

• 2 × Gate Opener Arms
• 3 × Remote Controls
• 1 × Set of Installation Accessories
• 1 × Control Box
• 1 × User Manual

Warranty:

This product comes with a 1-year warranty.
